    Bafang BBS01B 36V 250W Mid Drive Motor Electric Bike Conversion Kit eBike Bicycle Middle Engine Parts BBS01

    €624.66 €901.92
    Unit price  per
    🚚︎Buy now to receive in Sep 29 - Sep 29 days

    SPECIFICATIONS:

    Brand Name: BAFANG

    Origin: CN(Origin)

    Design: Brushless

    Certification: CE

    Voltage: 36V

    Wattage: 201 - 300w

    Motor Type: Side Hung Motor

    Bafang Model: MM G340.250

    Bafang controller: designed inside the motor

    Bottom bracket: 68mm

    Motor current: 15A

    Display Working Temperature: -20-80C

    Waterproof Grade: IP65


    36V 250W Bafang Mid Drive Motor
    With an integrated speed sensor, this mid-drive motor, which is compatible with standard bikes, has a rated power of 250W, a reduction ratio of 1: 21.9 and a maximum torque of 80 N.m, providing ideal power for vehicles. Light but strong and efficient, this motor greatly enhances riding comfort and is suitable for touring bikes and commuter bikes.

    Hot Recommend:
    36V-250W-Mid-Motor-with-Battery36V250W1636

    Feature:
    • Upgrade: Upgraded IRFB3077 mosfets controller.
    • Four riding modes: Pure electric mode & human riding model & power assistance & push model. 4 working modes can be switched at will.
    • Easy Installation: Can be successfully installed into an electric bicycle in just a few time by only a few tools which can remove the crankset and the center shaft, as well as tools for installing this mid-drive motor.
    • Universal Compatible: It's compatiable with mountain bike,road bike, racing bike ect bikes with 68-73mm bottom bracket
    Motor Specification:
    Motor Model: BBS01B
    Bafang Model: MM G340.250
    Power:250W
    Voltage:36V
    Controller Current: 15A
    No Load Speed(RPM) :83-87
    Load Speed(RPM):78-83
    MAX Torque:80 N.m
    Efficiency: > 80%
    PAS SENSOR : Speed Sensor
    Reduction Ratio: 1 : 21.9
    Centification:CE/EN 14764/ROHS
    Waterproof Grade:IP65
    Motor Weight: 3.98kg
    Bracket bottom length:68mm
    Operation Temperature:-20-45℃
    Waterproof Grade: IP65
    Display Working Temperature: -20-80C

    FAQ:
    How do I know if this mid drive motor fits for my bike?
    This mid drive motor fits for the bike with 68mm (2.68inch) - 73mm (2.87inch) wide bottom bracket. The inner diamater of the bracket should be not less than 33.5mm. We'll send extra install accessoreis for 73mm bottom bracket.

    Can I install the motor as soon as I receive it?
    Before installing the motor, please follow the steps in the manual to connect the motor to see if the motor can work normally. If there is a problem, please contact us first, we will provide technical support, don't worry.

    Packaging included:
    1 * 36V 250W Mid Drive Motor
    1 Pair * Brake Lever (We default to ship brake levers, it can change to hydraulic brake sensor for free if you need)
    1 Pair * Crank

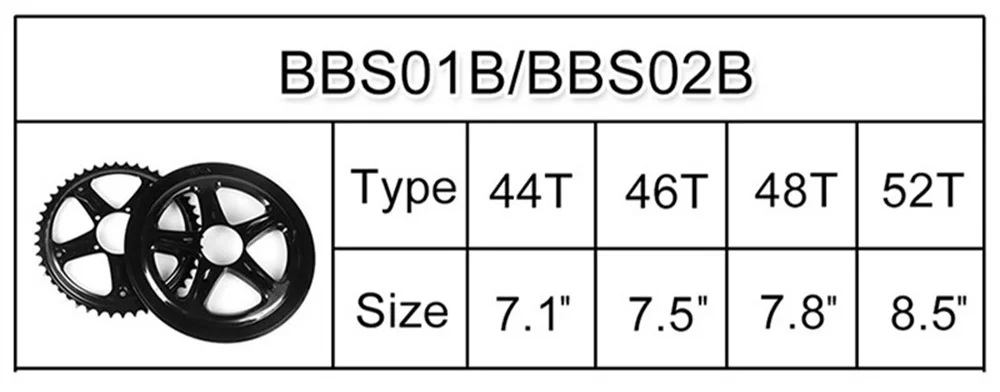

    1 Pair * Chainwheel (44T/46T/48T/52T option, please kindly leave us message if you want to change chainwheel)
    1 Set * Thumb Throttle
    1 Set * Speed Sensor

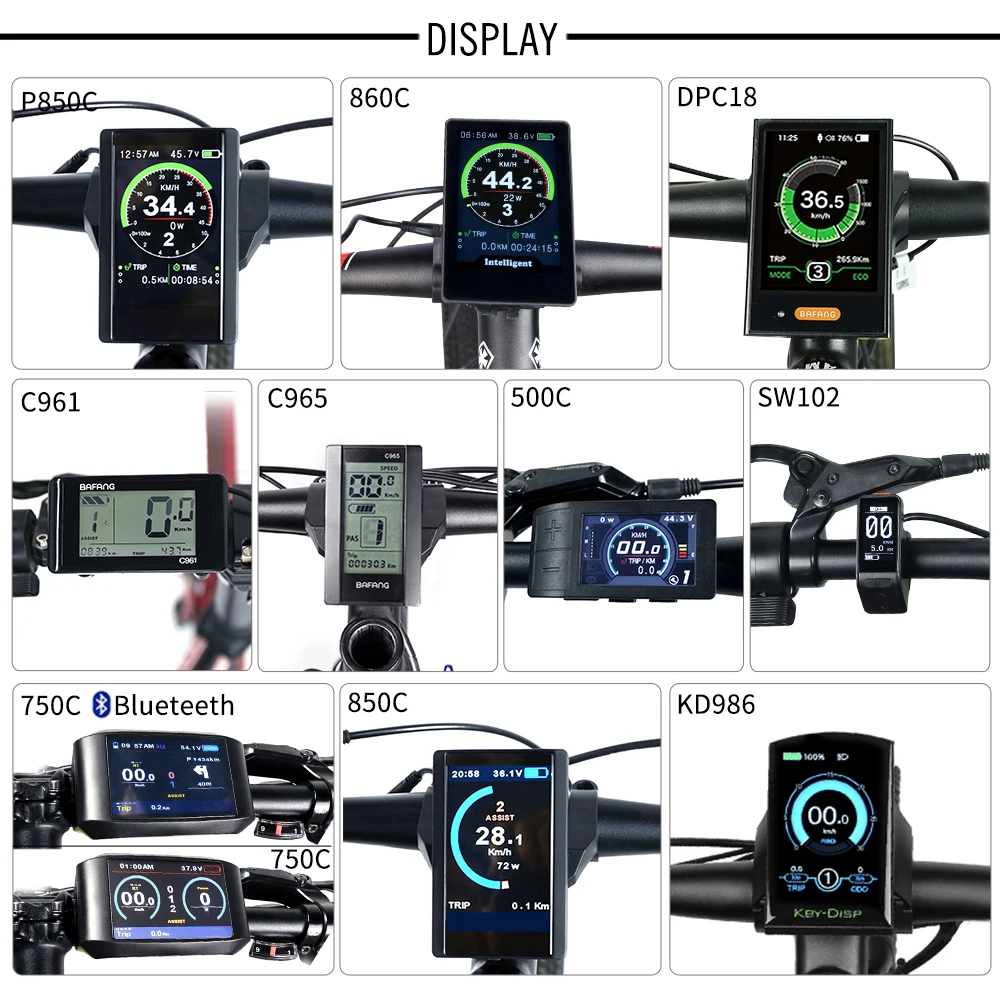

    1 * Display ( 750C bluetooth, DPC18, KD986, 860C, P850C, 850C, 750C, SW102, 500C, C965, C961 option)
    1 * 4 in 1 Cable
    1 * Accessories
    Gifts: 1 pcs Install Tool Wrench + 1 pcs 6V Front Light (can change to 6V Tail Light) + 1pcs XT60 port motor battery connector cable + 1 set * Install accessories for 73mm bottom bracket + User Mnual + Cable ties
    36V250W海报

    中置电机套件bbs-礼物不带贴纸36V250W参数图接线图01仪表(新)04仪表功能图(新)牙盘牙盘-刹把接线图02

    73MM电机安装示意图





    中置带灯-电机安装图01
