Brand Name: GEYIREN
Wire or Wireless: wired
Size Name: 90x53x26mm
Output Frequency: 12V
Rated Power: 12V
head up display: product name
Model: HUD M10
Function: speed, rpm, water temperature, voltage
Item Type: Alarm Systems & Security
Material Type: ABS material
HUD display size: 3.5inch
Light Modification: Adjust by hand and adjust by light sensor
accessories: M10,Reflective Film,OBD Cable,Antiskid Pad,English User Manual
OBD Cable Length: 1.8M
Easy Installation: Connect HUD with Car charger
Installation Position: Center console
External Testing Certification: CE, ROHS, FCC
Warrenty: 1 Year
M10 HUD head up display
HUD short for Head Up Display.It displays driving datas on the front windshield such as
speed,RPM,water temperature,voltage,single mileage etc on the car front window glass;avoiding drivers unsafety because of watching the instrument while driving.Drivers can read the driving information instantly , and can always keep the best state on the way with HUD.
Brand Name: GEYIREN
Name: Head Up Display

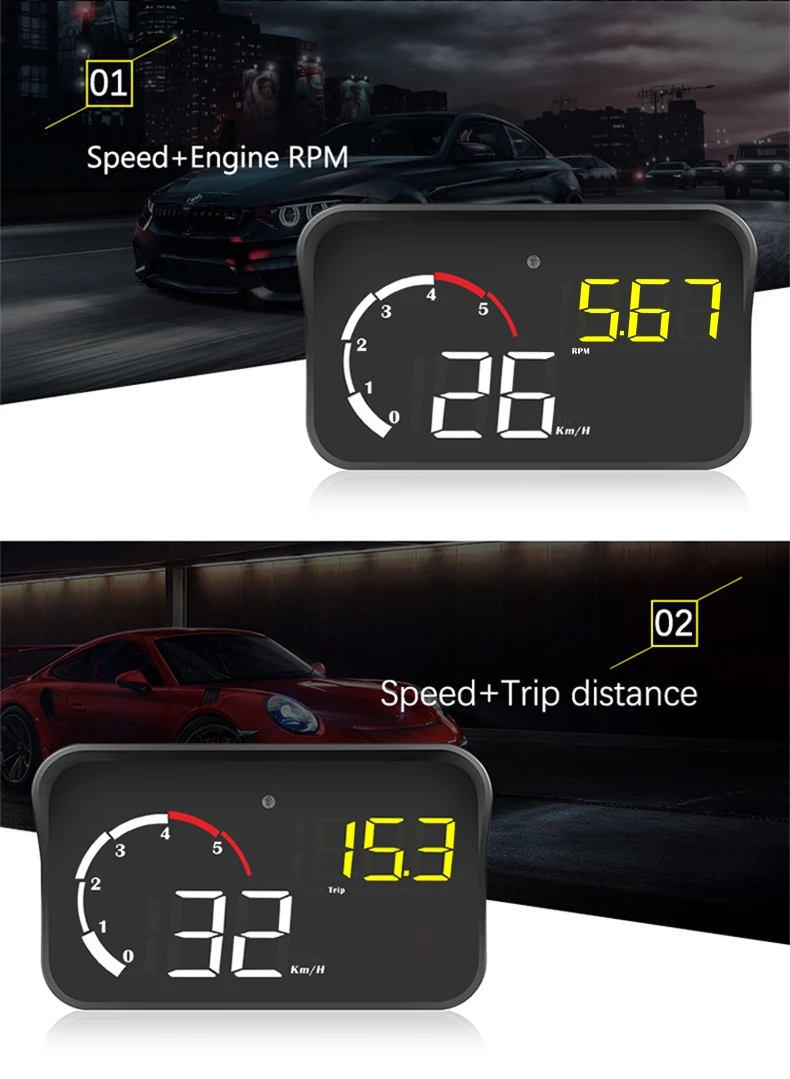

Display unit: vehicle speed, clock, battery voltage, RPM water temperature, etc.
Alarm: overspeed, engine failure, water temperature, voltage, etc.
Installation location: center console
Connection: Connect to the OBD2 port of the vehicle
Compatible: Available for cars with OBD2 (after 2007 years) (owners of Zhonghua, Peugeot, Ford and Mondeo ,Please do not place an order)
1X OBD Cable (1.8m)
1X Non-slip Mat
FAQs (Solution for Common Problems):
1.The screen without any display,and no electricity
Start the car engine;check if the OBD cable line is tight;please pull down the OBD cable several times to confirm;check if HUD power switch turns on. If no display still,please test the device on a different car, analyze whether the car OBD diagnostic interface is good, if it is not good,please repair it and try again.
2.When HUD power on, HUD only shows the car voltage and be automatic power off after 30 seconds driving.
HUD is only suitable for cars with OBD2 agreement and EU-OBD agreement（Other region:after 07 years）
HUD Products donnot support JOBD and OBDI and recommended test for another car.
a.First check the speed unit is correct or not, the speed unit can switch into KM/H and MPH, short press in the wave button to switch between KM/H and MPH
b.When HUD is power on,vertical press the setting button for 5 seconds to enter into the menu options, find Speed Adjustment,up or down the setting button to increase or decrease the value according to the difference until it shows correct one.After adjustment, vertical press in 5 seconds to save it.
4.Wrong operation lead to crashes. Or inaccurate datas
Do a reset setting.
